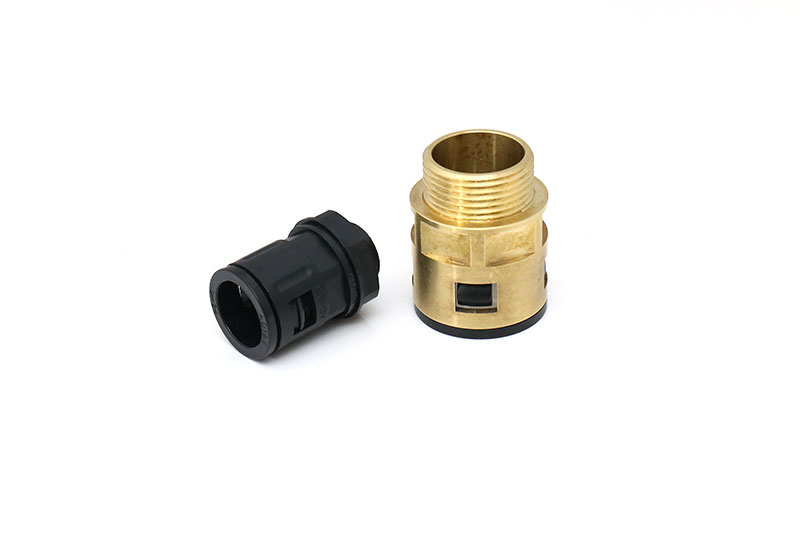

尼龍快插式軟管固定索頭環保PA66波紋管塑料電纜防水接頭
分類：塑料電纜防水接頭
型號：QTF
品牌：ATR
產地：寧波市奉化區
廠家：奉化市安泰爾電器有限公司
產品詳情
產品概述
該產品采用尼龍PA66材質制作而成，也可定制UL94V2，特殊的夾緊爪設計，可以使夾緊浪管的抗拉力增強，快速拔插安裝，提高安裝工作效率；本產品的靜態溫度-40℃至100℃，可瞬間加熱到120℃；動態溫度-20℃至80℃，可瞬間加熱到100℃；有黑色、白色兩種顏色可挑選。
技術參數
QTF-M 公制螺紋
| 適配軟管 | 編號 | 螺牙規格 | 螺紋外徑 | 螺紋長度 | 包裝(PCS) |
| AD10.0 | QTF-M10 | M10*1.5 | 10 | 8.5 | 50 |
| QTF-M12 | M12*1.5 | 12 | 8.5 | 50 | |
| AD13.0 | QTF-M12 | M12*1.5 | 12 | 10 | 50 |
| QTF-M16 | M16*1.5 | 16 | 10 | 50 | |
| QTF-M18 | M18*1.5 | 18 | 10 | 50 | |
| AD15.8 | QTF-M16 | M16*1.5 | 16 | 10 | 50 |
| QTF-M18 | M18*1.5 | 18 | 12.5 | 50 | |
| QTF-M20 | M20*1.5 | 20 | 12.5 | 50 | |
| AD18.5 | QTF-M20 | M20*1.5 | 20 | 12.5 | 50 |
| QTF-M22 | M22*1.5 | 20 | 12.5 | 50 | |
| AD21.2 | QTF-M20 | M20*1.5 | 20 | 13 | 50 |
| QTF-M24 | M24*1.5 | 24 | 13 | 50 | |
| QTF-M25 | M25*1.5 | 25 | 13 | 50 | |
| AD25.0 | QTF-M25 | M25*1.5 | 25 | 13 | 50 |
| AD28.5 | QTF-M25 | M25*1.5 | 25 | 13 | 20 |
| QTF-M27 | M27*1.5 | 27 | 13 | 20 | |
| QTF-M30 | M30*1.5 | 30 | 13 | 20 | |
| QTF-M32 | M32*1.5 | 32 | 13 | 20 | |
| AD34.5 | QTF-M32 | M32*1.5 | 32 | 14 | 10 |
| QTF-M36 | M36*1.5 | 36 | 14 | 10 | |
| QTF-M40 | M40*1.5 | 40 | 14 | 10 | |
| AD42.5 | QTF-M40 | M40*1.5 | 40 | 15 | 8 |
| QTF-M48 | M48*1.5 | 48 | 15 | 8 | |
| AD54.5 | QTF-M50 | M50*1.5 | 50 | 16 | 5 |
| QTF-M63 | M63*1.5 | 63 | 16 | 5 |
QTF-P PG制螺紋
| 適配軟管 | 編號 | 螺牙規格 | 螺紋外徑 | 螺紋長度 | 包裝(PCS) |
| AD10.0 | QTF-PG70 | PG7 | 12.4 | 8.5 | 50 |
| AD13.0 | QTF-PG9 | PG9 | 15.2 | 10 | 50 |
| AD15.8 | QTF-PG11 | PG11 | 18.4 | 12.5 | 50 |
| QTF-PG13.5 | PG13.5 | 20.4 | 12.5 | 50 | |
| AD18.5 | QTF-PG13.5 | PG13.5 | 20.4 | 12.5 | 50 |
| AD21.2 | QTF-PG16 | PG16 | 22.5 | 13 | 50 |
| AD25.0 | QTF-PG21 | PG21 | 28.3 | 13 | 20 |
| AD28.5 | QTF-PG21 | PG21 | 28.3 | 13 | 20 |
| AD34.5 | QTF-PG29 | PG29 | 37 | 14 | 10 |
| AD42.5 | QTF-PG36 | PG36 | 47 | 15 | 8 |
| AD54.5 | QTF-PG42 | PG42 | 54 | 16 | 5 |
| QTF-PG48 | PG48 | 59.3 | 16 | 5 |
QTF-G G制螺紋
| 適配軟管 | 編號 | 螺牙規格 | 螺紋外徑 | 螺紋長度 | 包裝(PCS) |
| AD10.0 | QTF-G1/4 | G1/4" | 13.1 | 8.5 | 50 |
| AD13.0 | QTF-G3/8 | G3/8" | 16.6 | 10 | 50 |
| AD15.8 | QTF-G3/8 | G3/8" | 16.6 | 12.5 | 50 |
| QTF-G1/2 | G1/2" | 20.9 | 12.5 | 50 | |
| AD18.5 | QTF-G1/2 | G1/2" | 20.9 | 12.5 | 50 |
| AD21.2 | QTF-G1/2 | G1/2" | 20.9 | 13 | 50 |
| QTF-G3/4 | G3/4" | 26.4 | 13 | 50 | |
| AD25.0 | QTF-G3/4 | G3/4" | 26.4 | 13 | 50 |
| AD28.5 | QTF-G3/4 | G3/4" | 26.4 | 13 | 20 |
| AD34.5 | QTF-G1 | G1" | 33.2 | 14 | 10 |
| AD42.5 | QTF-G1 1/4 | G1 1/4" | 41.9 | 15 | 8 |
| AD54.5 | QTF-G1 1/2 | G1 1/2" | 48 | 16 | 5 |
| QTF-G2 | G2" | 60 | 16 | 5 |
